Playing Tic-Tac-Toe as the world watches — An introduction to BlockChain and State Channels (Part 2)

Posted Updated
By Sai Hemanth B 10 min read

Introduction

This two-part series is a brief introduction to the concepts of Ethereum and State Channels by building a Tic-Tac-Toe application. Read Part 1 here.

You have solved all the conventional issues of playing a bet match of Tic-Tac-Toe with the use of Smart Contracts on the Ethereum network. Now, you are facing foundational problems of a Blockchain itself which are speed and cost of transactions.

Why are transactions on Blockchain slow?

A Blockchain is fundamentally a set of blocks and each block is made up of transactions. Only transactions included in blocks are considered to be valid. A block can consist of a predefined number of transactions only. In Ethereum, the average number of transactions in a block is 70 and the average block creation time is around 13 seconds. One may ask, why not just create blocks instantly? To create a block i.e., validate a set of transactions, one needs to solve an extremely difficult cryptographic puzzle which takes a considerable amount of time. This process is known as mining.

When a Blockchain experiences high traffic, the transactions are destined to wait for long periods of time by the design itself. Even if there are no other transactions waiting to be processed, there is a minimum time for the transaction to be included into a block. To make things even worse, the decentralized nature of a Blockchain can cause multiple miners (ones who create blocks) from different parts of the world to create blocks containing similar transactions. Only one of these blocks will be accepted into the Blockchain and the other blocks get discarded.

Read more on resolving forks here.

To make sure that a block B containing a transaction is definitely included in the blockchain and accepted by the network, it is advised to wait for a minimum number of blocks (6 blocks in Bitcoin, which takes around 1 hour) to be created after B. The affirmation that a block will not be revoked once added to the blockchain is known as Finality. Ethereum has a finality time of 2.5 minutes.

Why are transactions on Blockchain expensive?

As mentioned before, the miners need to solve a cryptographic puzzle using their computers to create a block and include your transaction. Computers need electricity and hardware, neither of which are free. To make the act of mining profitable, the transactions require a transaction fee (gas in Ethereum) which the miner gets rewarded. Hence, the transaction fee depends on various factors such as average electricity and hardware costs to perform mining.

Note: The earlier technical details are not required to understand the following sections.

The Solution

Don’t use a Blockchain to solve petty problems.

Not every piece of information needs to be on the Blockchain. Identifying what needs to go on a Blockchain is crucial. Do we really need the world to watch “everything”?

The stages in which we need the intervention of a smart contract are,

  1. Initial Funding — The smart contract needs to store the bets before the game begins to ensure that even if one player is malicious, he/she is penalized.
  2. Invalid move — When a player makes an invalid move, such as making multiple actions (crossing off multiple boxes) in one turn, or not making a move at all, the smart contract needs to be able to act as a judge and penalize the act.
  3. Inactivity —The smart contract needs to take the correct decision when a player refuses to make the next move.
  4. Withdrawing — At the end of the game, based on the verdict, the funds need to be distributed.

Not so surprisingly, these were the issues we began with! We need to design a Smart Contract to solve only these problems and nothing more.

Since the Smart Contract will no longer track and validate every state transition of the Tic-Tac-Toe board, how do the players know what the current state of the board is? We use a messaging channel between players to exchange player moves and updated board states.

This brings up a crucial problem, how do we prove that there is no impersonation? How do we prove that if one receives a message from Alice, the message is actually created and sent by Alice?

Digital Signatures

Every Ethereum account is identified by a private/public key. These keys have one peculiar property. It is possible to encrypt any data with the public key and this encryption can only be reversed with the private key. This is known as asymmetric key encryption. Interestingly, the reverse is also possible.

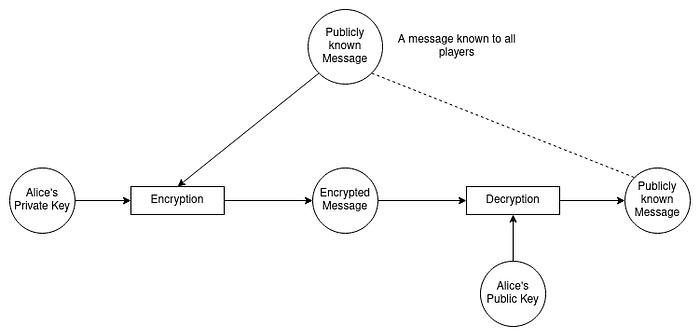

We can encrypt data with the private key which can only be reversed by the corresponding public key. This forms the basis of digital signatures. One can encrypt a publicly known message using the private key (which is only known to the owner of the account). Anyone can now decrypt the encrypted message using the sender’s public key and verify that the sender possesses the private key i.e., it is actually the owner of the public key.

Before sending any move as a message, the player can simply attach a digital signature (i.e., encryption of message using private key) of the move to prove that he is not being impersonated.

For convenience, the game can be divided into a set of states,

Intent State

Before a game even begins, the players need to share an intent to play a game together. Alice and Bob will each create a message of the following format and send to their opponent.

1
2
3
4
5

state: "INTENT"
playerAddress: "<Player's Ethereum Public Key Here>"
betAmount: 10
state: "<Initial state of the tic-tac-toe board>"
contractAddress: "<Address at which the smart contract is hosted>"

In this message, only the address is allowed to be different for the player intents. Otherwise, the intent is discarded. contractAddress is the agreed upon smart contract to be used. Once a player receives and sends an intent he agrees with, it is decided that the game is happening.

Depositing Funds

Players will now call deposit() function on the smart contract and deposit the bet amounts.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18

deposit(Intent senderIntent, Intent opponentIntent) {
  require(hasValidSignature(senderIntent) && hasValidSignature(opponentIntent));

  // Check if the intents are matching in all fields except playerAddress
  require(areValidIntents(senderIntent, opponentIntent));
  require(sender == senderIntent.address);
  require(sender.amountSent == senderIntent.betAmount);

  if (!aliceHasDepositedFund) {
    // The first player depositing will be called Alice
    aliceHasDepositedFunds = true;
    alice = senderIntent.address;
  } else {
    // The second player will be called Bob
    bobHasDepositedFunds = true;
    bob = senderIntent.address;
  }
}

The first player depositing the betAmount is assigned as Alice, and the next player will be Bob. The function requires intents of both players before accepting any funds.

Move State

Once both players see that the bets have been deposited by checking the state of the Smart Contract, Alice makes her first move and sends a message of the following format to Bob along with the digital signature through the messaging channel.

1
2
3
4

type: "MOVE"
state: "<Board state after making the first move>"
turn: 1
player: "<Alice's public key>"

Note: Reading the state (variables) of a Smart Contract do not need a transaction. Only state modifications require a transaction.

Bob makes the next move in a similar way.

1
2
3
4

type: "MOVE"
state: "<Board state after making the second move>"
turn: 1
player: "<Bob's public key>"

Since, both players are friendly, the game continues in a fair manner.

Note: One turn consists of two moves, first by Alice and then by Bob.

The game proceeds with incrementing turn numbers. At the final turn, considering Alice wins, she makes the last move.

Withdraw

Either of the players can call the withdraw() function (once the final move of the game is done) on the smart contract by sending the last two moves of the game.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21

withdraw(Move preFinalMove, Move finalMove) {
  // Before executing,
  // 1. Check if signatures are correct
  // 2. Check if finalMove has a final board state
  //    i.e., no more move can be performed.
  // 3. Check if preFinalMove -> finalMove is a valid transition

  require(isGameOver == false);

  isGameOver = true;

  if (aliceHasWon(finalMove)) {
    sendAmount(alice, betAmount + betAmount);
  } else if (bobHasWon(finalMove)) {
    sendAmount(bob, betAmount + betAmount);
  } else {
    // Game has tied.
    sendAmount(alice, betAmount);
    sendAmount(bob, betAmount);
  }
}

The last two moves, one by each player, are required to avoid a single player from unanimously creating a final move and withdrawing funds.

What happens when a player makes an invalid move or stays inactive?

Players can always reject invalid moves by the opponent. Hence, it can be considered to be a special case of opponent inactivity, where the other player refuses to make a valid move. In these scenarios, the active player can call the reportInactivity() function of the Smart Contract by sending the move made by him and the last move made by opponent.

1
2
3
4
5
6
7
8
9
10
11
12

// Assigning a dummy address 0 initially.
address inactivePlayer = address(0);
Move lastMove = null;

reportInactivity(Move currentMove, Move lastOpponentMove) {
  // Check if,
  // 1. Signatures are valid.
  // 2. lastOpponentMove -> currentMove is a single valid move

  inactivePlayer = lastOpponentMove.player;
  lastMove = currentMove;
}

If Bob decides to make a valid move now, he can call the respond() function with the next valid move.

1
2
3
4
5
6
7
8
9
10
11
12
13

Move respondMove = null;

respond(Move nextMove) {
  // Check if
  // 1. Signature is valid.
  // 2. The sender is the inactivePlayer.
  require(sender == inactivePlayer);
  // 3. Valid single transition from lastMove -> nextMove.

  respondMove = nextMove;
  inactivePlayer = address(0);
  lastMove = null;
}

Alice can now read Bob’s next move from the respondMove variable in state. If Bob does not make a move even after a predefined waiting period (say 10 minutes), Alice can withdraw both players bets.

1
2
3
4
5
6
7
8
9
10
11
12
13
14

withdrawInactivity() {
  // Check if game is not already over i.e., funds have
  // not already been withdrawn.
  // Check if it's been atleast 10 minutes since inactivity
  // has been reported.

  isGameOver = true;

  if (inactivePlayer == alice) {
    sendAmount(bob, betAmount + betAmount);
  } else {
    sendAmount(alice, betAmount + betAmount);
  }
}

Note: reportInactivity can be generalized to accept intents as well, to handle the situation where one player deposits funds, but the other does not.

The following flowchart summarizes the state transitions of the game.

Hence, the Smart Contract acts like a third-party which only gets involved to start the game, end the game and handle any disagreements between the players.

When players are fair to each other, only three transactions in total need to be made to the Blockchain.

  1. Deposit of bet by Alice before the game begins.
  2. Deposit of bet by Bob before the game begins.
  3. Withdrawing of bets once the game is over.

This drastically improves the performance of the game.

Speed: Every move is almost instantaneous, since we do not need to make the move on Ethereum.

Cost: The players only need to pay the transaction fee for three transactions, which is a significant improvement than the earlier approach.

This concept is not a new idea in the Blockchain space. You have developed what is known as a State Channel. A State Channel involves creating a channel between two or more parties where state updates can be exchanged directly and a smart contract only handles the disputes.

Read more on State Channels here.

This specific example of tic-tac-toe is inspired by a State Channel protocol called Force Move. Read here.

Thanks for reading!
